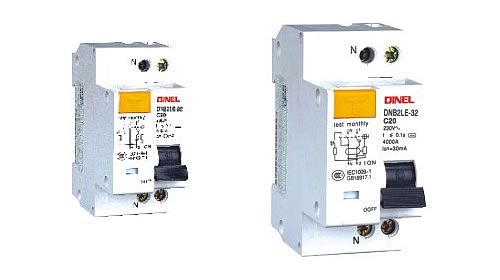

DNB2LE-20 Residual current-driven breaker

Application Range:

DNB2LE-20 residual current-driven breaker (called creepage breaker) is mainly used in the line with the AC 50Hz or 60Hz, rated voltage 230V and the current from rated current to 20A, it can protect from the physical body shock and device creepage and include overload and short-circuit protection function, it can switch on and switch off the electrical set and lighting line under the normal case non-frequently, especially applicable to the industrial and commercial lighting system.
This product meets the GB16917.1 and IEC61009-1 standard.

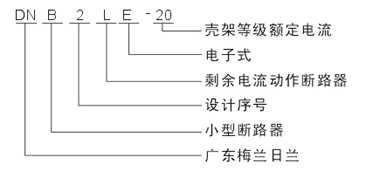

Model and the explanation:

Main specs and technical parameters:

1. Category
1.1 Divided by the rated current: ：6A,10A,16A, 20A;
1.2 It is one two-pole breaker with one protection pile (1P+N);
1.3 Type of the instant release is C type (5In～10In);

2. Main technical parameters and indexes
2.1 Main technical parameters (see the table 1)
2.2 Time-current-driven feature (see the table 2)
2.3 Residual current protection feature
   a.Rated residual-driven current I△n：30mA
   b.Rated residual non-driven current I△no：15mA
   c.Breaking capability of rated residual current I△m：500A
2.4 Mechanical electrical life: creepage breaker can bear 4000 times of operation circles, wherein the electric life it 2000 times
2.5 Wiring: select the copper lead area from the reference table 4 when the creepage breaker is used.
