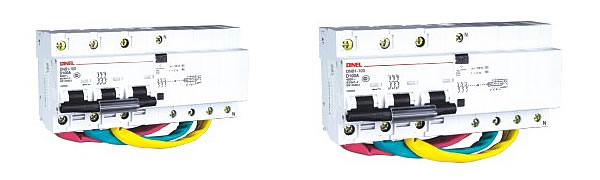

| DNB1LE-100 Series residual current-driven breaker |
 |
Application Range: |
| DNB1LE-100 series residual current-driven breaker (called as the creepage breaker) is applicable to the line with AC 50Hz, rated voltage 415V and rated current 100A, can prevent from creepage, overload and short-circuit and can be added by the over-voltage and under-voltage protection function. It is mainly used to prevent from the building lighting and distribution system. |
|

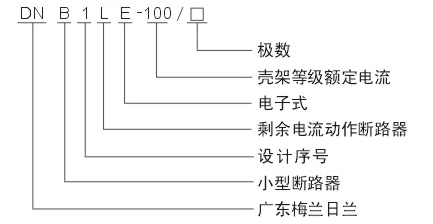

Model and the explanation: |
 |
|
Main specs and technical parameters: |
| Structure feature DNB1LE-100 series small creepage breaker is made through combination of the DNB1-100 high-breaking small breaker and creepage release, the creepage breaker is the current-driven electronic creepage breaker and mainly consists of the zero-sequence current inductor, electronic component board, creepage release and breaker with the overload and short circuit protection. |
 |
