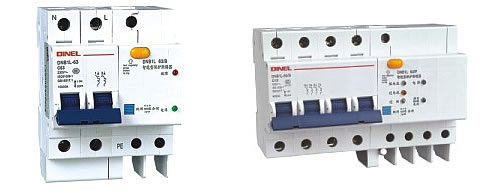

DNBLE-63/B Intelligent protection breaker

Application Range:

DNBLE-63/B intelligent protection breaker is applicable to the line with AC 50Hz or 60Hz, the voltage from rated voltage to 230/400V, and the current from the rated current to 63A and can prevent from the over-heat, current leakage, overload, short-circuit, under-voltage, surge, electromotor coil short circuit and cut-off delay, it can guarantee the physical body security and prevent from the device failure accident.

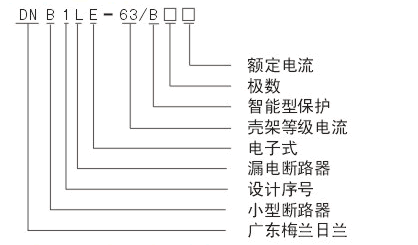

Model and the explanation:

Main specs and technical parameters:

1. Main specification
1.1 Divided by rated current: 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50 and 63A
1.2 Divided by pole and loop:
a. Dual-pole breaker
b. Four-pole breaker
1.3 Divided as C type and D type by the feature of the instant release

2. Technical parameters
2.1 Rated operation voltage Un：two-pole 230V，four-pole 400V
2.2 Rated short circuit breaking capability: 6000A/4000A
2.3 Overheat protection range: 80℃±5℃
2.4 Over-voltage protection 250V±5V（phase-zero voltage）
2.5 Under-voltage protection 180V±10V（phase-zero voltage）
2.6 Restrain the top surge voltage 2000V
2.7 Cut-off delay brake close 3min
2.8 Protect the top thunder induction voltage 2000V;
2.9 Creepage action performance: 30mA action, action time is 0.1S
